TIFF to MAP

TIFF2MAP converts 8-bit greyscale uncompressed or LZW encoded TIFF image files to Wayne Stahnke's 3-bit greyscale MAP format.

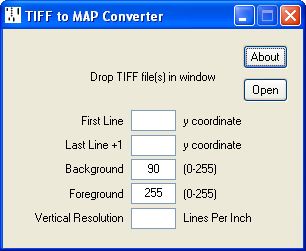

First Line	Optionally allows a restricted range of scan lines to be specified. By default the entire file is converted.
Last Line +1
Background	Set to match the background level of the source material so that the roll and any writing on it appear as black in the MAP file.
Foreground	Set to match the foreground level of the source material so that holes appear as white in the MAP file.
Vertical Resolution	Optionally overrides the value derived from the TIFF file. Useful when Photoshop distorts the declared vertical resolution by applying the horizontal resolution to both axes.

Translation from TIFF's 256 shades of grey to MAP's 8 shades

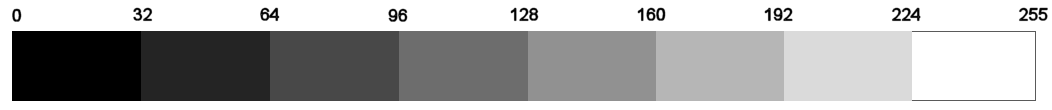

Background=0, Foreground=255

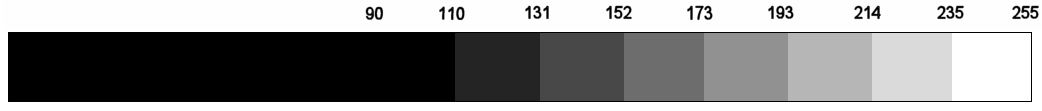

Background=90, Foreground=255 (default)

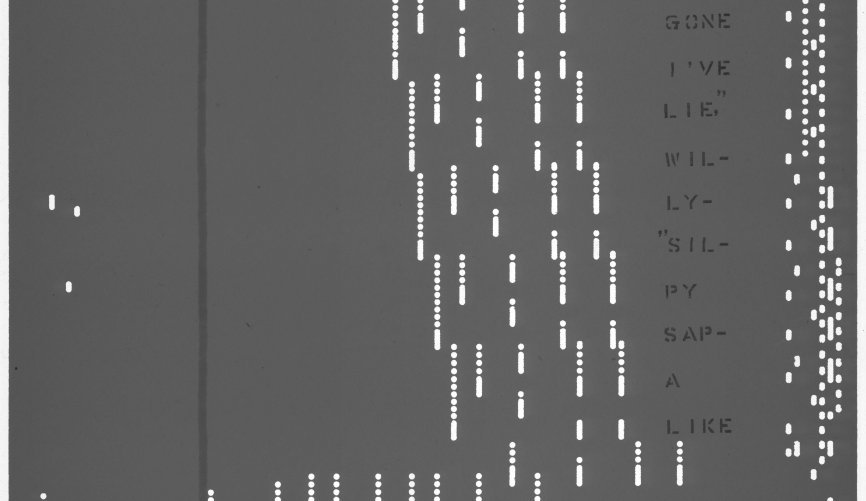

TIFF Input

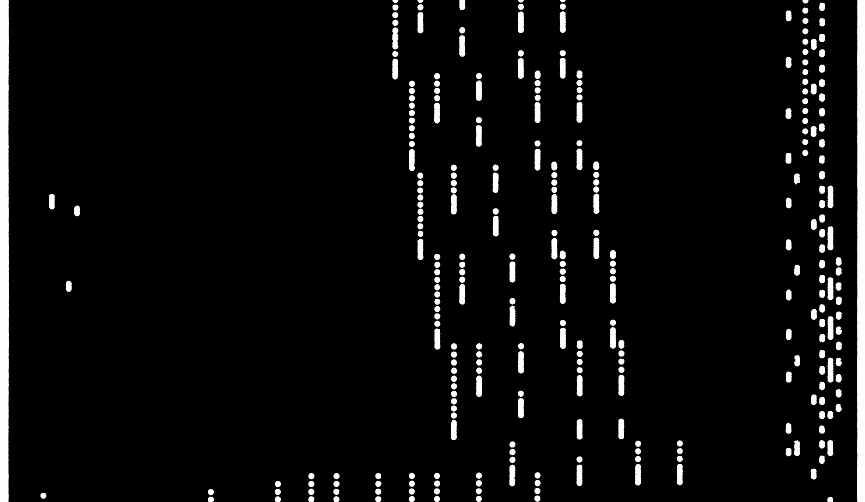

MAP Output (Background=90, Foreground=255)

During conversion the hourglass cursor is displayed while the mouse is within the window.

Current version 1.32, 21 February 2021. TIFF2MAP.ZIP
